POPULAR PRODUCTS

Fireproof board
Fiber-reinforced silicate fireproof board. Xinghan fireproof board is a professional fireproof board made from selected high-quality fireproof quartz powder, flame-retardant mineral powder, high-quality fire-resistant plant fiber and various mineral fibers, supplemented with cement and special fireproof materials, and processed by advanced production processes, including molding, pressurization, steam curing and other special technologies.
Excellent quality and reliable performance.
Reasonable price and high cost-effectiveness.
Adequate inventory and timely supply.
Complete specifications to meet diverse needs.
Strict quality inspection to ensure quality.
Professional team, attentive service.
Product Parameters
Fiber-reinforced silicate fireproof board.

Xinghan fireproof board is a professional fireproof board made from selected high-quality fireproof quartz powder, flame-retardant mineral powder, high-quality fire-resistant plant fiber and various mineral fibers, supplemented with cement and special fireproof materials, and processed by advanced production processes, including molding, pressurization, steam curing and other special technologies.


Fiber-reinforced Silicate Fireproof Board Technical Specifications
Basic Physical Properties
Nominal Density850-950 kg/m³
Moisture Content≤8%
Water Absorption≤30% by volume
Porosity45-55%
Fire Performance
Fire RatingClass A1 (Non-combustible)
Fire Resistance PeriodUp to 6 hours (system dependent)
Maximum Service Temperature1000°C
Thermal Conductivity0.15 W/m·K at 20°C
Mechanical Properties
Flexural Strength≥9.0 MPa
Compressive Strength≥12.0 MPa
Tensile Strength≥4.5 MPa
Modulus of Elasticity≥4000 MPa
Dimensional Specifications
Standard Thickness6/8/10/12/15/20/25/30mm
Standard Width1200mm
Standard Length2400/2440/2700/3000mm
Dimensional ToleranceLength/Width: ±2mm, Thickness: ±0.5mm
Durability Properties
Freeze-Thaw ResistanceNo damage after 100 cycles
High Temperature StabilityNo cracking after 4h at 950°C
Thermal Shock ResistanceNo delamination (25 cycles)
Weather ResistanceNo degradation after 50 years
Chemical & Environmental Properties
pH Value9-11
Chemical ResistanceResistant to most chemicals
Environmental Impact100% Asbestos-free, Non-toxic
VOC EmissionsZero VOC
Installation Properties
Screw Holding Strength≥1000 N (face), ≥850 N (edge)
MachinabilityExcellent (can be cut, drilled, nailed)
Surface FinishSmooth both sides


Performance advantages
1.Our advanced fireproof boards deliver superior fire resistance with zero flame spread and up to 4-hour fire rating, ensuring maximum

safety in critical applications.


2.Featuring exceptional mechanical strength, thermal insulation, and moisture resistance, our boards provide comprehensive protection

 while offering sound dampening capabilities.


3.Installation efficiency is guaranteed through lightweight design, easy cutting properties, and compatibility with standard construction

tools, minimizing waste and labor costs.


4.From fire walls to ducting protection, our versatile boards excel in diverse applications across industrial facilities and commercial buildings,

 meeting complex safety requirements.


5.Quality assurance is backed by ISO certification and rigorous testing to international fire safety standards, ensuring consistent performance

and reliable documentation.


6.Environmentally conscious design incorporates non-toxic materials with zero asbestos, low VOC emissions, and recyclable components,

aligning  safety with sustainability.


Fiber-Reinforced Calcium Silicate Fireproof Board: A high-performance inorganic building material, lightweight and high-strength, fireproof

and waterproof, soundproof and heat-insulating, moisture-proof and aging-resistant.

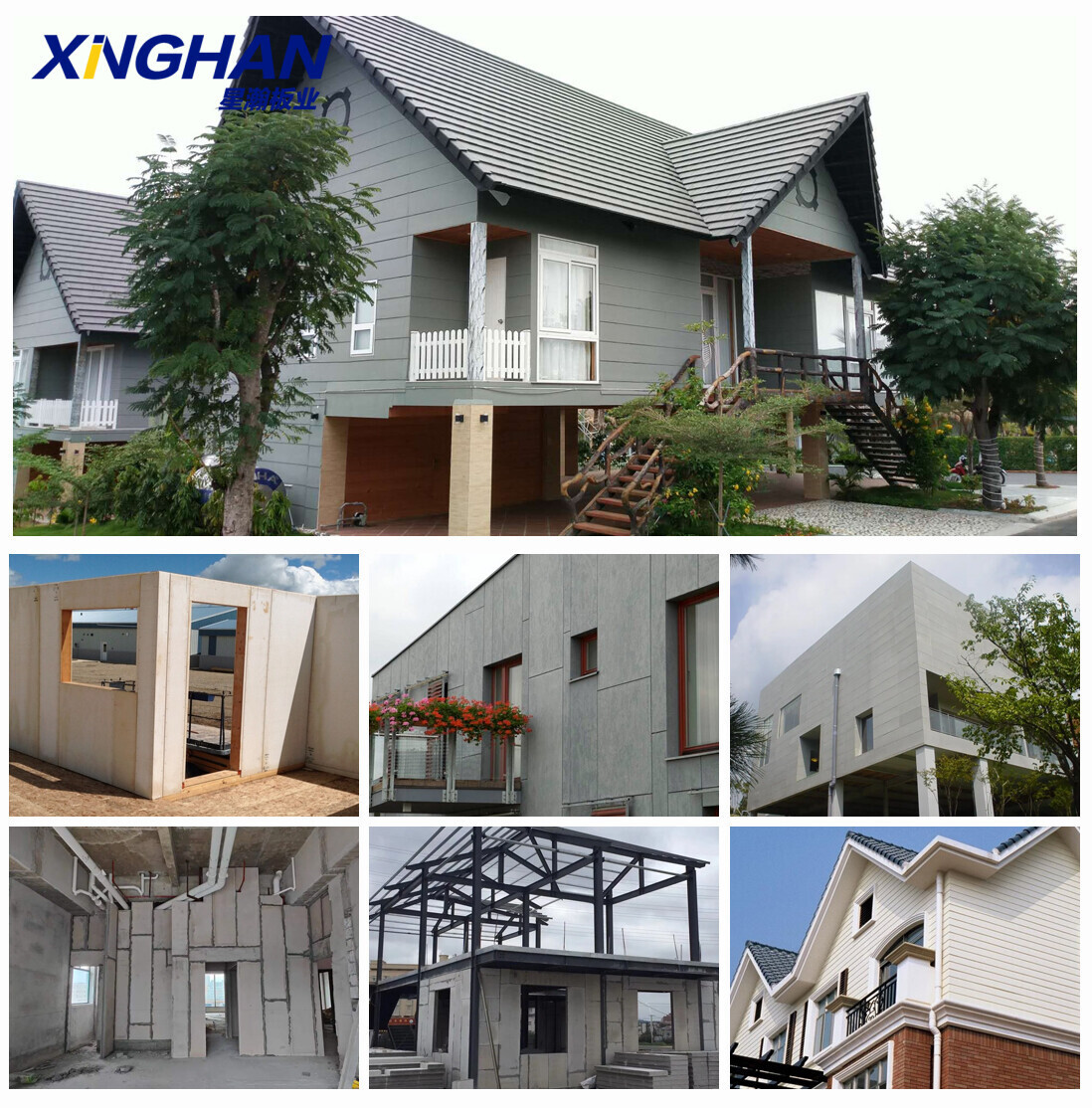

Applications:

Fireproof Partitions: Non-combustible Class A, inhibits fire spread, suitable for firewalls and evacuation routes in shopping malls,

hospitals, and schools.


Decorative Projects: Smooth surface, can be painted, wallpapered, or distressed, used for interior and exterior walls, ceilings,

and partitions.


Special Environments: Waterproof and mildew-proof, acid and alkali resistant, suitable for toilets, bathrooms, laboratories, hospitals,

and food factories.


Environmentally Friendly Customization: Asbestos-free, customizable colors and sizes, lightweight and high-strength, reducing costs.

Fireproof board


Factory Display
  • f86375ef-35c2-47b6-a1c1-03aa0ef80134
  • f5ea72d8-9554-4159-82a9-7c8989c671be
  • d9d924a65bbed3d10bac1c133919bce4
  • bbece004a1483e37dfaeed8a71f7c25c
  • b788203b-877c-4d59-b272-3241b0425658
  • a86cbd533ecef4303e4863b49ca88a6b
  • 5b48737b-4035-43f4-8498-093463611d71
  • 07cd9256-c7c1-4e9a-a705-da9e5d13aebe
  • 98ae620919bad20bc458165cd5c69f8b
  • 0368ccbed54d2a94a2f5d51b001a9f1d
  • 565cfb7b-2a30-457c-9116-f805b20269be
  • 714e2ae8-ba58-4fb0-b3ef-c24e8e13cbba
  • 37503eaa-d880-45e8-ad7a-1f8d1404e91f
  • 4a141d85ec31a05c7c540285a079eea8
Qualification certificate
  • 0-1-企业信用等级证书
  • 0-2-企业资信等级证书
  • 0-3-重合同守信用企业
  • 0-4-重服务守信用企业
  • 0-5-重质量守信用企业
  • 0-6-诚信经营示范单位
  • 0-7-质量服务诚信单位
  • 0-8-招投标信用企业
  • 0-9-诚信经理人荣誉证书
  • 0-10-诚信企业家荣誉证书
FAQ

Q: Are you a manufacturer or a trading company?
A: We are a professional cement product manufacturer located in China. You are welcome to contact us and visit our factory before placing an order.

Q: How do you guarantee the quality?
A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.

Q: Can I get free samples?
A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.

Q: What is the MOQ?
A: If you are scheduling to place a small quantity order or trial order, feel free to contact us, we can meet your requirements.

Q: Can you OEM or ODM?
A: Yes, we have a strong developing team. The products can be made according to your request
